飛利浦?LUXEON?3535L?Line燈珠

性能與利益
支持 ENERGY STAR? 流明維護認證要求
符合 DLC Premium 標準
對于 LUXEON 3535L HE 和 LUXEON 3535L HE Plus，最大驅動電流為 300mA，可減少 LED 數量，提供卓越的流明
1/7 ANSI 微型顏色范圍，確保精準的顏色控制
確保105℃的溫度點，支持更高的板溫度
全范圍 CCTs 和 CRI 配置，確保設計靈活性
UL 認證組件 [E352519]

應用:建筑景觀,筒燈,高棚和低棚燈,室內區域照明,燈泡. 室外

規格書下載

服務熱線：0755-27934948

產品詳情

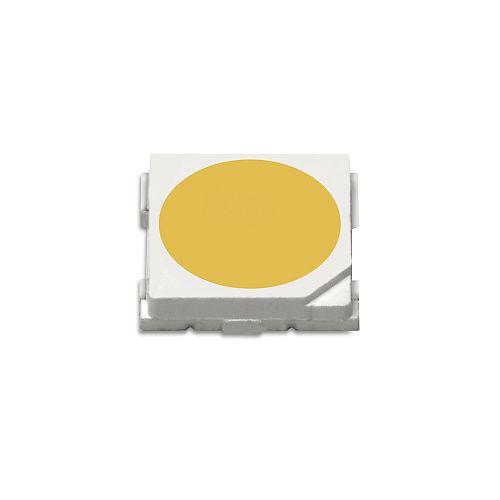

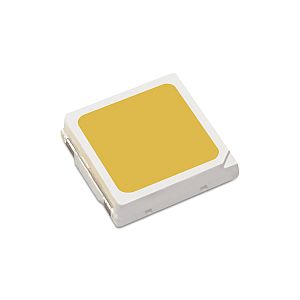

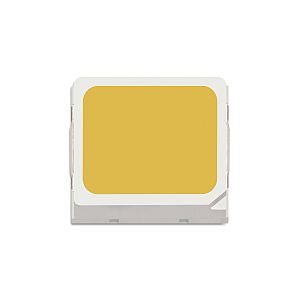

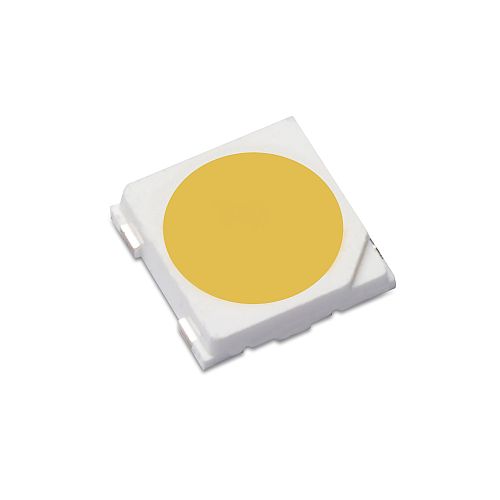

LUXEON 3535L 系列具有室內及戶外照明市場所需的效率與可靠性。它可提供分布式光源應用所需的優化性能和光線質量，可提供三個性能級別。除提供相關的指定色溫和色彩渲染外，LUXEON 3535L 系列還可提供以下三款產品:

LUXEON 3535L – 入門級通量與效率
LUXEON 3535L HE – 中等通量與效率
LUXEON 3535L HE Plus – 高通量與最高效率

Product performance at 100mA, Tj=25°C.

PRODUCT	NOMINAL CCT	MINIMUM CRI	LUMINOUS FLUX (LM)		TYPICAL LUMINOUS EFFICACY (LM/W)	PART NUMBER
PRODUCT	NOMINAL CCT	MINIMUM CRI	MINIMUM	TYPICAL	TYPICAL LUMINOUS EFFICACY (LM/W)	PART NUMBER
LUXEON 3535L	4000K	70	40	49	161	MXA7-PW40-0000
	5000K	70	40	49	161	MXA7-PW50-0000
	5700K	70	40	49	161	MXA7-PW57-0000
	6500K	70	40	47	155	MXA7-PW65-0000
	2200K	80	28	33	109	MXA8-PW22-0000
	2500K	80	28	34	112	MXA8-PW25-0000
	2700K	80	36	44	145	MXA8-PW27-0000
	3000K	80	34	44	145	MXA8-PW30-0000
	3500K	80	34	44	145	MXA8-PW35-0000
	4000K	80	36	46	151	MXA8-PW40-0000
	5000K	80	36	47	155	MXA8-PW50-0000
	5700K	80	36	45	148	MXA8-PW57-0000
	6500K	80	36	45	148	MXA8-PW65-0000
	2700K	90	31	36	119	MXA9-PW27-9000
	3000K	90	31	36	119	MXA9-PW30-0000
	4000K	90	34	40	132	MXA9-PW40-0000
LUXEON 3535L HE	4000K	70	42	51	176	MXA7-PW40-H001
	5000K	70	42	51	176	MXA7-PW50-H001
	5700K	70	42	51	176	MXA7-PW57-H001
	6500K	70	42	51	176	MXA7-PW65-H001
	2200K	80	30	35	121	MXA8-PW22-H001
	2500K	80	30	36	125	MXA8-PW25-H001
	2700K	80	38	46	164	MXA8-PW27-H001
	3000K	80	38	46	164	MXA8-PW30-H001
	3500K	80	40	46	164	MXA8-PW35-H001
	4000K	80	42	52	183	MXA8-PW40-H001
	5000K	80	42	51	183	MXA8-PW50-H001
	5700K	80	42	51	183	MXA8-PW57-H001
	6500K	80	42	51	183	MXA8-PW65-H001
	2700K	90	32	37	128	MXA9-PW27-H001
	3000K	90	32	37	128	MXA9-PW30-H001
	3500K	90	32	40	138	MXA9-PW35-H001
	4000K	90	32	41	142	MXA9-PW40-H001
	5000K	90	32	41	142	MXA9-PW50-H001
	5700K	90	32	40	138	MXA9-PW57-H001
	6500K	90	32	40	138	MXA9-PW65-H001
LUXEON 3535L HE Plus (Round LES)	2700K	80	44	47	165	L135-2780CA35000P1
	3000K	80	44	47	165	L135-3080CA35000P1
	3500K	80	44	47	165	L135-3580CA35000P1
	4000K	80	48	53	186	L135-4080CA35000P1
	5000K	80	48	52	186	L135-5080CA35000P1
	5700K	80	48	52	186	L135-5780CA35000P1
	6500K	80	48	52	186	L135-6580CA35000P1
LUXEON 3535L HE Plus (Square LES)	2700K	70	45	52	183	L135-2770SA35000P1
	3000K	70	47	53	190	L135-3070SA35000P1
	3500K	70	48	54	193	L135-3570SA35000P1
	4000K	70	50	56	200	L135-4070SA35000P1
	5000K	70	50	56	200	L135-5070SA35000P1
	5700K	70	49	55	197	L135-5770SA35000P1
	6500K	70	49	55	197	L135-3570SA35000P1
	2700K	80	45	50	183	L135-2780SA35000P1
	3000K	80	46	52	186	L135-3080SA35000P1
	3500K	80	47	53	190	L135-3580SA35000P1
	4000K	80	48	54	193	L135-4080SA35000P1
	5000K	80	48	54	193	L135-5080SA35000P1
	5700K	80	48	54	193	L135-5780SA35000P1
	6500K	80	47	53	190	L135-6580SA35000P1
	2700K	90	38	43	154	L135-2790SA35000P1
	3000K	90	39	44	158	L135-3090SA35000P1
	3500K	90	40	45	161	L135-3590SA35000P1
	4000K	90	41	46	165	L135-4090SA35000P1
	5000K	90	41	46	165	L135-5090SA35000P1
	5700K	90	41	46	165	L135-5790SA35000P1
	6500K	90	40	45	161	L135-6590SA35000P1
